PVC Electrical Conduit Pipe Making Machine
Looking for a reliable PVC conduit pipe machine Vishwakarma Industries offers a high-speed extrusion line Models 52×18 and 52×22. These machines are built for high output and low energy use. They ensure precise manufacturing and smooth pipe finish.
Our machines are ideal for making electrical conduit pipes and wiring ducts. They are used in homes, offices, factories, and commercial buildings. Each pipe meets safety standards and is built to last.
Vishwakarma Industries was founded in 1987 by Mr. Kailash Chand. With over 38 years of experience, we are known for quality and trust. We provide strong machines and excellent after-sales support. Our products are used across India and in export markets.
Technical Specifications
The PVC Electrical Conduit Pipe Making Machine (Model 52x18 & 52x22) is made by Vishwakarma Industries, Delhi. It is designed to produce strong and smooth electrical conduit pipes using rigid PVC material. This machine is ideal for small, medium, and large manufacturing units. It offers steady output, low power use, and easy operation.
✅ Key Benefits
High Pipe Quality The machine makes pipes with strong walls and smooth surfaces. Pipes last long and work well in electrical setups.
Flexible Production Suitable for all types of factories. Helps businesses grow with reliable output.
Energy Saving Uses less electricity. Cuts down running costs without reducing performance.
Easy to Use Simple controls and smart design. Needs little training and low maintenance.
Consistent Results Delivers uniform pipe size and quality in every batch. Ensures smooth and stable production.
This machine helps manufacturers meet rising demand for safe and durable electrical conduit pipes. It combines quality, efficiency, and cost savings in one reliable solution. Would you like this formatted for a brochure or translated into Hindi next.
Models
VI 52x18
VI 52x22
Extruder Screw
52 mm
52 mm
Main Motor
15 HP
20 HP
Heating Load
15 HP
15 HP
Berrel Blower Load
1 HP
1 HP
Extruder Vacuum
1 HP
1 HP
Loader Motor
2 HP
2 HP
Feeder Motor
3 HP
3 HP
Vacuum Pump
3 HP
3 HP
Take-up
2 HP
2 HP
Cutter
2 HP
2 HP
Air Compressor
5 HP
5 HP
Vibrator Motor
0.5 HP
0.5 HP
Hot & Cool Mixture
30 HP+7.5 HP
30 HP+7.5 HP
Water Tank
12"x12"x145"
12"x12"x145"
LD Ratio
18:1
22:1
Installation Area
80'x50'
100'x50'
Pipe Range
20mm to 110mm
20mm to 110mm
Production Approx
100 to 110 Kg.
100 to 140 Kg.
Advance Features

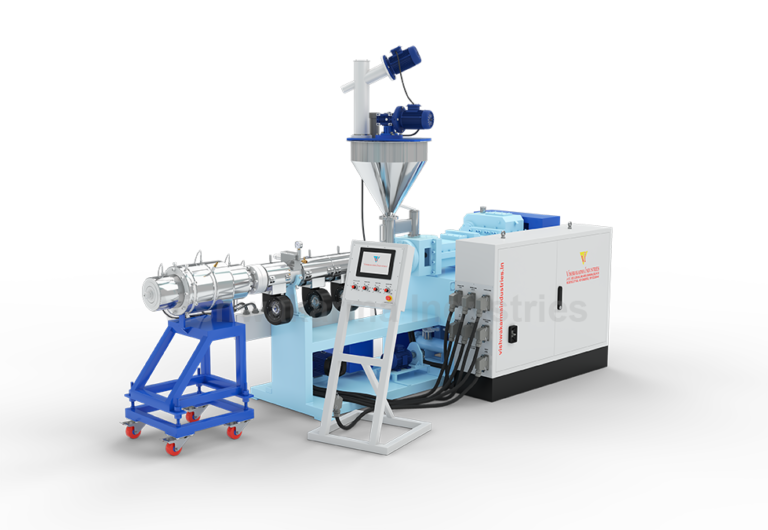

Advanced Extrusion Technology for High-Quality Pipe Production
Our PVC Electrical Conduit Pipe Making Machine uses the latest plastic extrusion technology. It offers reliable performance, easy maintenance, and high output. This machine is ideal for manufacturers seeking a cost-effective and energy-saving solution. It is perfect for producing rigid PVC electrical conduit pipes used in wiring systems. The machine features a high-speed twin screw extruder. This ensures smooth melting and steady flow of rigid PVC material. A PID digital temperature control system manages heat across multiple zones. This helps maintain consistent pipe thickness and surface quality. The stainless-steel cooling tank cools the pipes evenly. It also prevents rust, making the machine more durable for long-term use.
✅ Key Features
- Twin Screw Extruder (52×18 & 52×22): For smooth melting and flow
- Size Capacity: Produces conduit pipes up to 110 mm
- User-Friendly: Simple control panel with temperature display
- Durable: Built for 24×7 industrial use
- PID Temperature Control: Ensures stable and accurate heating
- High Performance: Delivers consistent and efficient pipe production
- Eco-Friendly: Uses sustainable materials to reduce environmental impact
- Low Power Use: Helps cut down electricity costs
- Quiet Operation: No noise or vibration – ideal for indoor setups
- Automation Options: Available in semi-automatic and fully automatic models
These features make it a top choice for PVC electrical conduit pipe production in India. It offers the perfect mix of high performance, long-lasting build, and cost efficiency.
📌 Conclusion
The PVC Electrical Conduit Pipe Making Machine – Models 52×18 & 52×22 – is built with advanced extrusion technology. It delivers strong, accurate, and smooth conduit pipes for safe electrical installations. Designed for reliable performance and high output, it suits both small and large manufacturers.
With over 38 years of experience, Vishwakarma Industries offers trusted machines and excellent after-sales support. This makes it a smart choice for efficient, precise, and profitable pipe production. Choose Vishwakarma Industries for consistent quality, long-term value, and peace of mind.
Manufacturing Process of PVC Electrical Conduit Pipe
The PVC Electrical Conduit Pipe Making Machine (Model 52×18 & 52×22) from Vishwakarma Industries, Delhi follows a fast and efficient process. It is designed to produce strong, smooth, and durable conduit pipes using rigid PVC. The process reduces material waste, keeps wall thickness even, and runs at high speed. This makes it ideal for manufacturers in India and for export markets. Our machine ensures steady production with every batch. Each pipe meets Indian and international safety standards for electrical wiring. Here’s how the process works, step by step:
Raw Material Mixing in Hot and Cool Mixture :-
Rigid PVC resin, stabilizers, lubricants, fillers (like calcium carbonate), and color masterbatches are mixed in hot and cool mixers. This ensures even blending and smooth extrusion. Proper mixing improves pipe strength, shape, and surface finish.
Melting and Extruding :-
The blended material enters the twin screw extruder. PID-controlled heating zones melt the PVC gradually and evenly. This ensures smooth flow and consistent wall thickness.
Sizing and Shaping :-
The molten PVC passes through a die head to form the pipe. It then enters a vacuum calibration unit and sizing sleeve. This step ensures accurate diameter and a smooth surface finish.
Pipe Cooling System :-
The hot pipe moves through a stainless-steel cooling tank. Water sprayers and a recirculating pump cool the pipe evenly. This prevents bending and locks in the correct shape.
Haul-Off Unit :-
The traction unit pulls the pipe at a steady speed. Speed controls prevent stretching or deformation. It works in sync with the cutter for precise length.
Automatic Cutting Unit :-
The cutting unit slices the pipe into standard lengths. Cuts are clean, burr-free, and ready for packing.
PLC Control Panel Control Panel :-
The machine is operated through a user-friendly PLC panel. It controls speed, temperature, and safety alarms. Operators can monitor and adjust settings in real time. This improves quality, reduces errors, and boosts productivity.
PVC Electrical Conduit Pipe Utilization & Applications
PVC electrical conduit pipes made by our machine are used in many places. They are strong, long-lasting, and easy to install. Each pipe is flame-retardant and does not rust. They give excellent insulation and protect wires from damage.
These pipes are ideal for:
- ⚡ Home and Office Wiring Keeps electrical wires safe in houses, shops, and buildings.
- 🏢 Concealed Wiring Fits inside walls and ceilings for a clean and safe setup.
- 🏭 Industrial Cable Management Organizes and protects cables in factories and plants.
- 🛠 Control Panels and Machines Provides safe wiring paths in equipment and automation systems.
- 🚧 Underground and Surface Installations Works well for both hidden and exposed wiring setups.
- 📦 Telecom and Data Cables Protects network and communication cables in IT and telecom areas.
These pipes meet safety standards used in India and abroad. They are trusted by builders, contractors, and manufacturers for all types of projects.
